Beams are a major component of reinforced concrete construction in India. They carry loads from slabs, walls, and other structural elements, transferring them to columns.
In reinforced concrete design, the two most common types of beams are singly reinforced beams and doubly reinforced beams.
This guide explains the difference between singly and doubly reinforced beam, design aspects as per IS 456, their applications, and a comparison table for easy understanding.
What is a Singly Reinforced Beam? – Definition and Uses in RCC Construction
A singly reinforced beam is a reinforced concrete beam with steel reinforcement only in the tensile zone (usually at the bottom in simply supported spans).
Concrete is strong in compression but weak in tension. Steel reinforcement compensates for this weakness by carrying tensile forces.
Key points about singly reinforced beams:
- Economical when bending moment is within balanced section capacity.
- Common in residential RCC beam design.
- Suitable for small-span structures.

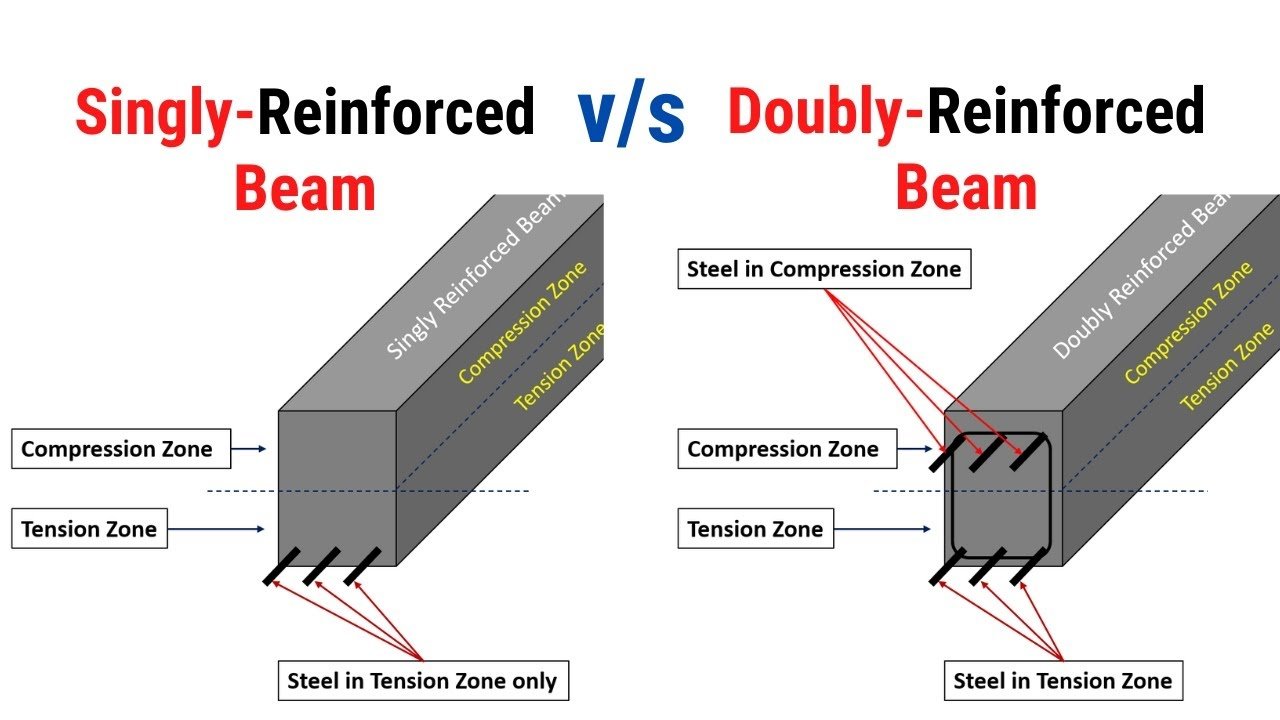

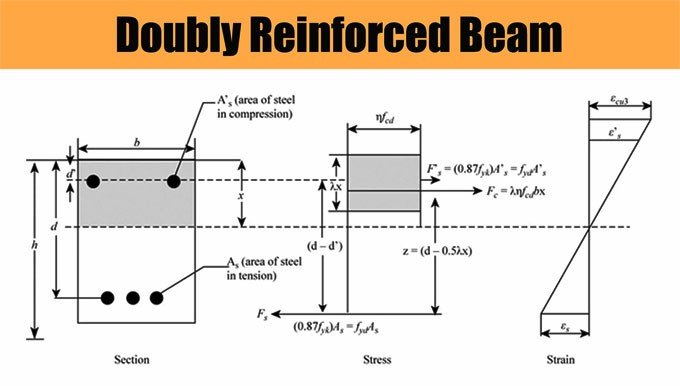

What is a Doubly Reinforced Beam? – Definition, Purpose, and Application
A doubly reinforced beam has steel reinforcement in both the tensile zone and the compression zone.
This type of reinforced concrete beam is designed when:
- Moment exceeds balanced section capacity.
- Beam depth is restricted by architecture.
- Higher ductility and deflection control are needed.
Key points about doubly reinforced beams:
- Used in heavy load structures like bridges and multi-storey buildings.
- Improves stiffness and controls long-term deflection.
- Common in earthquake-resistant beam design.
Also Read Beam Reinforcement Details in Construction — Complete Practical Guide for Indian Projects

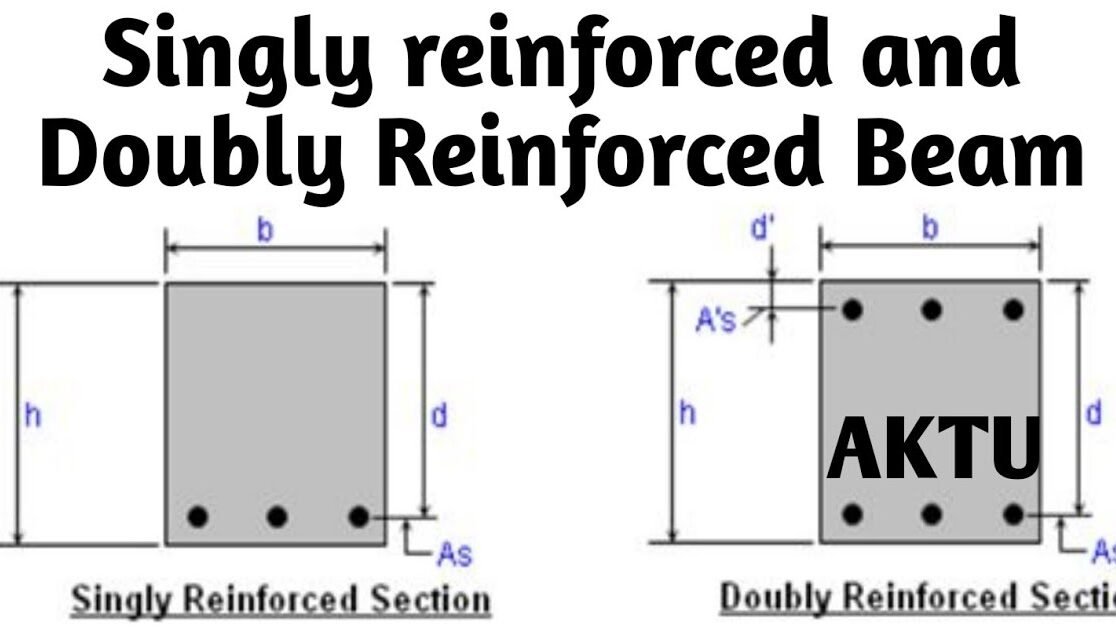

Singly vs Doubly Reinforced Beam – Comparison Table for Civil Engineering Students
| Feature | Singly Reinforced Beam | Doubly Reinforced Beam |
|---|---|---|
| Reinforcement location | Tensile zone only | Tensile and compression zones |
| Moment capacity | Limited to balanced section | Higher than singly reinforced |
| Depth requirement | More depth needed for heavy loads | Can handle more load at same depth |
| Steel quantity | Less | More |
| Cost | Lower | Higher |
| Deflection control | Moderate | Better |
| Applications | Light structures, short spans | Heavy load structures, restricted depth |
Why Use Singly Reinforced Beams in Building Construction?
- Most economical option for small-span RCC beams.
- Quick and easy to construct.
- Ideal when depth is not restricted.
- Recommended in IS 456 for normal loading conditions.
Why Use Doubly Reinforced Beams in RCC Design?
- Necessary when architectural limits restrict depth.
- Suitable for heavy loads and long spans.
- Offers better ductility, especially in earthquake zones.
- Helps control excessive deflection in service conditions.

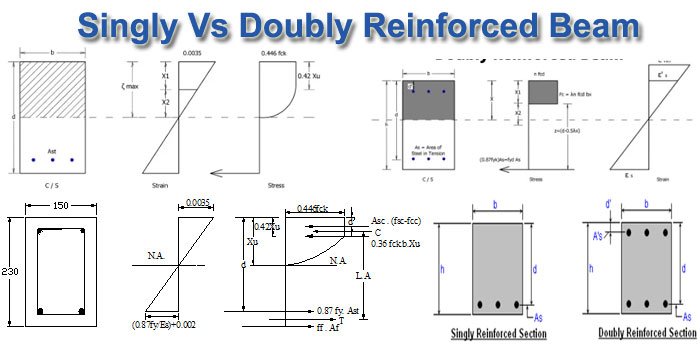

IS 456 Code Guidelines for Singly and Doubly Reinforced Beams
According to IS 456:2000:
- Design must follow the Limit State Method.
- Minimum reinforcement: 0.85% of cross-sectional area (for Fe 415 steel).
- Maximum reinforcement: 4% of cross-sectional area.
- Compression steel in doubly reinforced beams must be anchored properly.
Advantages and Disadvantages of Singly and Doubly Reinforced Beams
Singly Reinforced Beam – Pros and Cons
Advantages:
- Low cost.
- Less steel consumption.
- Simple design.
Disadvantages:
- Limited moment capacity.
- More depth needed for heavy loads.
- Higher deflection in long spans.
Doubly Reinforced Beam – Pros and Cons
Advantages:
- Higher moment capacity.
- Better deflection control.
- Works well in depth-restricted areas.
Disadvantages:
- Higher steel quantity = more cost.
- Requires skilled detailing and execution.
Applications of Singly and Doubly Reinforced Beams in India
Singly Reinforced Beam Uses:
- RCC beams in residential buildings.
- Short-span floor beams.
- Roof beam construction.
Doubly Reinforced Beam Uses:
- Beams in multi-storey buildings with limited depth.
- Bridge decks.
- Industrial floors with heavy loads.
- Seismic-resistant building frames.
Design Example – Singly vs Doubly Reinforced RCC Beam
Given:
- Span: 6 m
- Load: 20 kN/m
- Concrete grade: M20
- Steel grade: Fe 415
Singly Reinforced Beam:
- Calculate bending moment = (w × L²) / 8.
- Provide tensile steel as per bending requirement.
Doubly Reinforced Beam:
- If moment exceeds singly reinforced capacity,
- Add compression steel in the top zone.
- Provide extra tensile steel to balance compression.

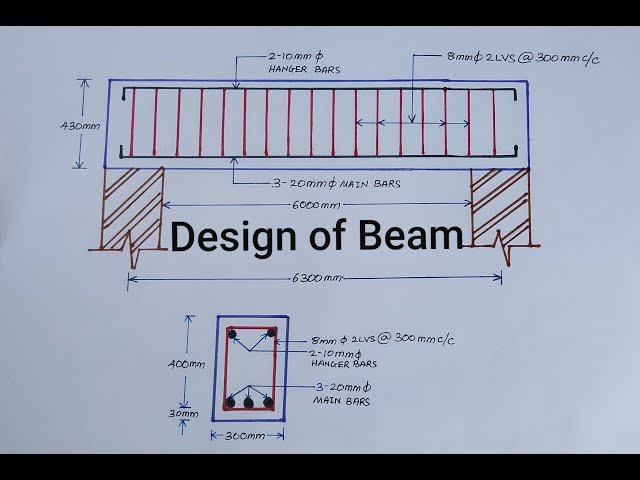

Example of singly reinforced beam vs doubly reinforced beam design
FAQs – Civil Engineering Beam Design
Q1: Which is stronger – singly or doubly reinforced beam?
Doubly reinforced beams are stronger due to steel in both zones.
Q2: Which beam is cheaper?
Singly reinforced beams are more economical for short spans.
Q3: When to use doubly reinforced beams?
When depth is limited or load is high.
Q4: Does IS 456 recommend doubly reinforced beams?
Yes, when bending moment exceeds balanced section capacity.
Q5: Can I mix both types in one building?
Yes, depending on design requirements.
Conclusion – Choosing the Right RCC Beam for Indian Construction
The difference between singly and doubly reinforced beam is mainly in reinforcement placement and load capacity.
- Singly reinforced beams are economical and simple for small spans.
- Doubly reinforced beams are essential for heavy loads or when depth is restricted.
For Indian civil engineering projects, the choice should follow IS 456 guidelines, site conditions, and safety requirements. A structural engineer should decide the type based on design calculations.
